Matt Dralle's RV-8 Project
' style=
Date:  4-20-2014
Number of Hours:  2.00
Manual Reference:
Brief Description:  New PMag Electronic Ignition - Part 02

I put two DB9 connector ports on the internal bulk that are respectively wired to the RS232 port on each of the PMags. This connections allows me to verify and configure a number of options including the amount of advance the PMag is allowed to automatically adjust during flight. I connected both RS232 ports to two USB-to-RS232 adapters and connected them to my computer and ran two copies of the PMag Application so I could verify the config and timing on both new PMags. Works great!

I can hardly wait to try this new ignition out!
' style=

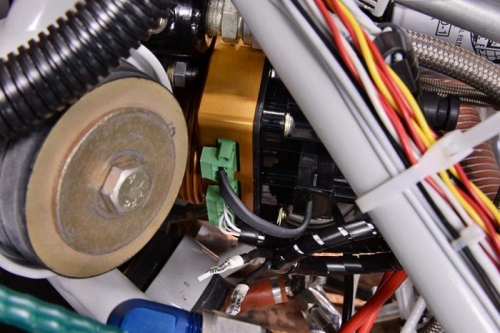

PMag Electronic Ignition

PMag Electronic Ignition

' style=

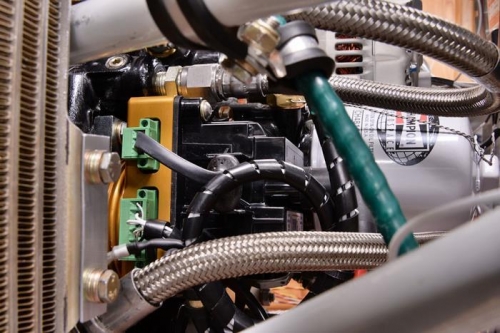

PMag Electronic Ignition

PMag Electronic Ignition

' style=

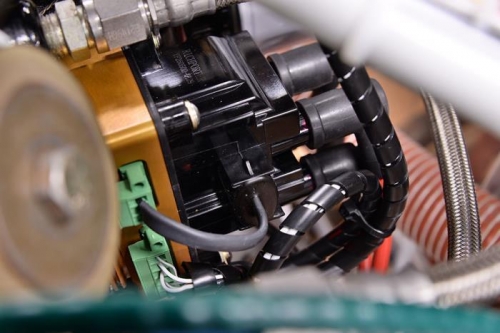

PMag Electronic Ignition

PMag Electronic Ignition
