Date:  1-31-2009
Number of Hours:  2.00
Manual Reference:
Brief Description:  Mount For Strobe PS & AutoTrim Module - Part 1

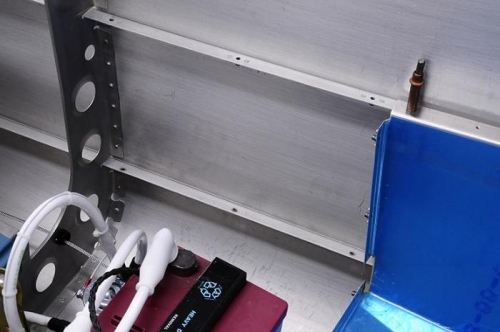

I've been agonizing for a while now over where to mount the strobe power supply and also the Automatic Trim module for the Autopilot system. Finally, I just decided that I needed to take the time today and build a nice mount in the battery compartment area. The mount attaches with 6 screws, three of which are reused from the baggage area skin attachment. Turns out its very sturdy and positions the two units perfectly for sweet cable installations. Neither will be will be visible under normal conditions, but will be very accessible with the baggage area battery cover skin removed.
' style=

.032

.032" Sheet w/ Angles and Platenuts

' style=

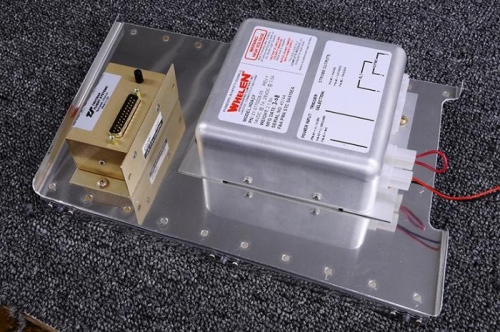

AP Auto Trim Module & Strobe Power Supply

AP Auto Trim Module & Strobe Power Supply

' style=

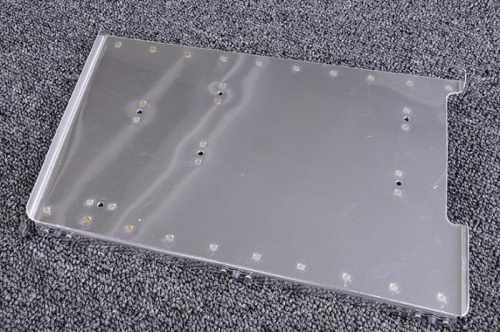

Added Three Holes for Bottom Mount

Added Three Holes for Bottom Mount
