Date:  5-5-2014
Number of Hours:  1.00
Manual Reference:
Brief Description:  Complete Schematics


Matt Dralle's RV-8 Schematics

The following schematics were created for my 2010 RV-8 #82880 N998RV. They are for reference only and should not be considered correct or applicable to any application other than the aforementioned RV-8. Use the information presented at your own risk. If you have any questions, please feel free to email at the address below.
  • Matt Dralle's RV-8 Schematics - 32MP High Resolution Images

  • Matt Dralle
    dralle@matronics.com
    RV-8 #82880 N998RV


    ' style=

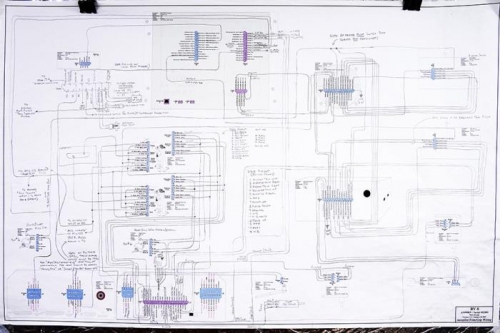

    Low Resolution Sample

    Low Resolution Sample

    ' style=

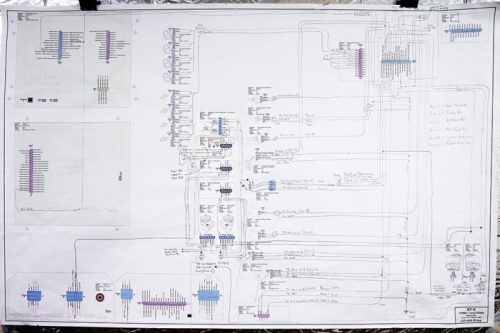

    Low Resolution Sample

    Low Resolution Sample

    ' style=

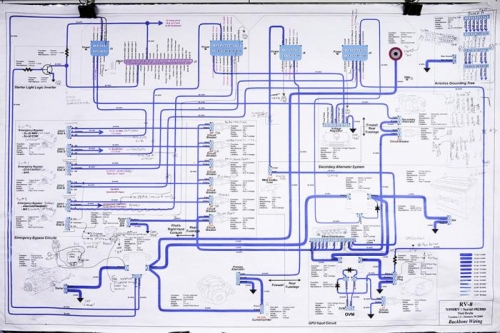

    Low Resolution Sample
