Date:  5-18-2014
Number of Hours:  2.00
Manual Reference:

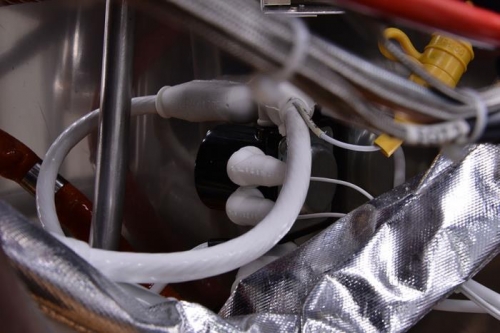

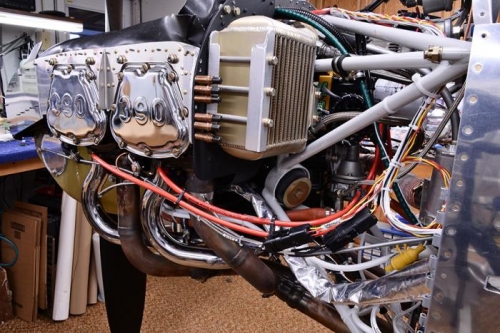

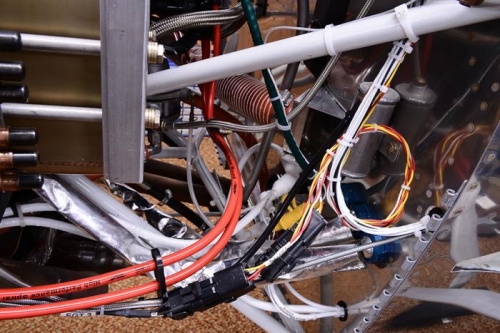

Brief Description:  Firewall-Forward Wiring Complete - Part 02

Finally, I'm happy to report that all of the EGT/CHT, PSI, Temp, and other sensors are working great and reporting properly up to the GRT EIS. I was able to use the new bulkhead-mounted RS232 ports in the baggage area to upgrade the firmware and verify operation of the Navworx ADS600B unit, as well as verify and set the timing on the EMags. Sweet!
